Acoustic folding partition partitions mobile acoustics china acoustic movable walls
Our partitions are used in a number of different applications to deliver greater functionality and sound control, including office buildings, gymnasiums, classrooms, hotels, hospitals, retail, banks, and conference and exhibition centers. Modernfold never loses sight of the fact that each project is unique and demands individualized attention to design, product selection, installation, and service.
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Track system||Single or twin point||Single or twin point||Single or twin point|
|Panel thickness||65mm||80mm / 85mm||100mm|
|Panel height||Up to 4000mm||Up to 6000mm||Up to 18000mm|
|Frame construction||Aluminum frame||Aluminum frame||Aluminum frame|
|Face material||9mm||9mm / 12mm||12mm|
|Fire safety||Optional Class I or O||Optional Class I or O||Optional Class I or O|
|Vertical profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles|
|Retractable seals||Aluminum black with |
double rubber seals
|Aluminum black with double rubber seals||Aluminum black with double rubber seals|
|Operation of seals||Manual, with supplied |
|Manual, with supplied operating handle||Manual, with supplied operating handle|
|Locking||Optional lock to pass doors||Optional lock to pass doors||Optional lock to pass doors|
|Pass doors||Single open in panel or |
double open in two panel
|Single open in panel or double open in two panel||Single open in panel or double open in two panel|
|Sound insulation||20-32dB Rw||28-36dB Rw||32-50dB Rw|
|Weight||Approx 22-35kg/sq M||Approx 25-40kg/sq M||Approx30-48kg/sq M|
|Finish Material||Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)|
Finish pattern and effect:Selling Units:Single item
Packaging & Delivery
Single package size: 4000X1100X100 cm
Single gross weight:26.0 kg
Package Type:Carton package, MDF batten on four section sides ,foam board on both front face
Lead Time :
|Quantity(Square Meter)||1 - 50||51 - 200||201 - 500||>500|
|Est. Time(days)||7||18||28||To be negotiated|
Modernized Soundproof Movable partition features
1.Hanging on ceiling
The floor without a track, just put the rail mounted on the ceiling
Each pieces of partition can turn around 360 degree.
3.Stable and secure
After partition is stable and reliable, and is not easy to swing
The large space divided into a small space, in order to reduce air conditioning power consumption;
Good heat insulation performance, Adopt effective fire prevention materials
Surface any adornment, can unite with indoor adornment effect
7.Easy to collect
Can be hidden in the special coffer, does not affect the overall appearance
Hotels, exhibition halls, restaurants, multi-functional rooms etc.

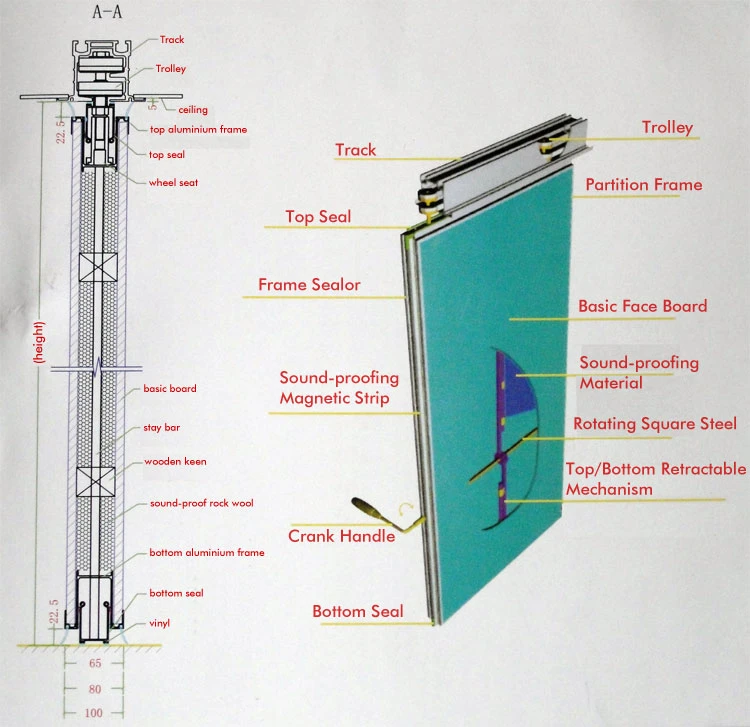

Components of Office Partition Walls:
Tracks: Made of good quality anodized aluminium 6063-T5 materials,hanging the office partition walls with wheels.
Wheels/Rollers: It is the carrier for the office partition walls ,let panels move more flexibly.Pulley bearing is more than 1600 KGS.
Connectors: Made of anodized aluminium 6063-T5 aluminum tracks,"L", "T", "+"types are available.
Rubber/vinyl seal: Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.
Rock Wool: Density of 60kg/m3,help us reduce the noise and heat.
Handle: Operate the retractable being up and down.
Retractable mechanism: Control the movement of the top and bottom seal to form a excellent sound insulation performance.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the office partition walls.
MDF board: 9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g
1:Factory direct price
3:Quick shipping with 5 days
4:Small order welcome
5:More than 3 years warranty
6:Support customer designs OEM ODM serviceFAQ
1:What you should you do on site?
A beam (truss)should built on site for track installation.The minimum distance leaving for track installation from false ceiling to top ceiling is 180mm.
2:How to install?
We will provide the installation manual and video guiding the installation job.We can also dispatch the installation engineer supervising the installation as request.
3:What is lead time ?
The lead time is 7 days to 10days.
4:How to ransport?t
Sea transport is a common mode of transportation.In an emergency,can be air freight .
5:How do the goods packing?
Carton paper package ,MDF batten cover all around cotner.
6:What is procurement procedure?
Firstly, seng us the shop drawing (if the shop drawings is not available ,you can tell us the height from false ceiling to finfshed floor and width from wall to wall)Secondly, we offer you the movable wall layout drawings for your confirmation.Thirdly, we quote the movable wall in acordance with confirmed
